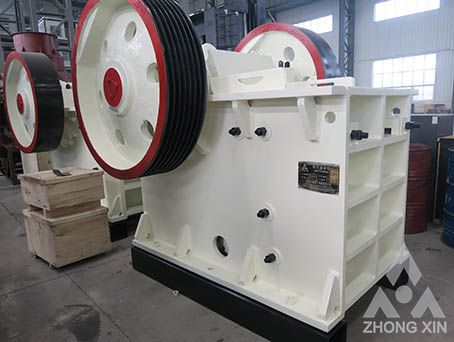

Jaw Crusher
Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy
-
TypePrimary Crusher -
Input Size210mm--1020mm -
Capacity3-500 (t/h)
Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
Whatsapp/Wechat:+86-13676922906 Email:sales@zxcrusher.com
Share to：
Product Center
- Cone Crusher Machine
- • PXH series gyratory crusher
- • Single cylinder cone crusher
- • Spring Cone Crusher
- • Compound Cone Crusher
- • PSG Series Compound Cone Crusher
- Stone Crushing Machine
- • Sand Making Machine
- • Jaw Crusher
- • Vertical Shaft Impact Crusher
- • Impact Crusher
- Screening Sand Washing
- • XS Sand washing machine
- • circular Vibrating Screen
- • ZSW Series Vibrating Feeder
- Mobile Crusher Plant
- • PC Series Mobile Cone Crusher Plants
- • PC Series Mobile Jaw Crusher Plants
- • PC Series Mobile Impact Crusher Plants
- • PC Series Mobile VSI Crushing Plants
Case
- • 350tph Granite Crushing Line In Peru
- • Gravel crushing and processing equipment
- • 150-200tph Aluminum stone crushing plant
- • 350tph pebble crushing plant
- • 300tph Iron ore crushing plant
News
- • How does a ball mill work?
- • How to improve the production efficiency of crusher?
- • How to solve the problems of blocking, spilling and non-feeding of vibrating feeder?
- • What aspects should be paid attention to in order to increase the output of cone crushers?
- • What is a ball mill?
- • Factors affecting the amplitude of the vibrating screen
Materials
- • River Stone Crushing Processing
- • Iron Ore Crushing Processing
- • Aggregate Crushing Processing
- • Granite Crushing Processing
- • Basalt Crushing Processing
- • Gold Ore Crushing Processing
Contact Us
Add：Room 609,Easttower,xiyuan international square,Jianshe Road,Zhengzhou City,Henan Province,China
Tel：+86-371-67660555
Whatsapp：+0086-13676922906
Email：sales@zxcrusher.com
Web：www.zxstonecrusher.com
Jaw Crusher is ideally suitable for primary and secondary crusher for material with compression strength less than 320MPA. Jaw Crusher is of high crushing ratio, larger capacity, well-distributed final product size, simple structure, reliable performance, convenient maintenance, lower operation cost, etc. It is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc.
Jaw Crusher is of high crushing ratio, larger capacity, well-distributed final product size, simple structure, reliable performance, convenient maintenance, lower operation cost, etc. Jaw Crusher, Primary Stone crushing machine, Limestone Crusher, Quarry Crusher, Granite Crusher, Gabbro Crusher, Basalt Crusher, River Stone Crusher, Coal Crusher Gangue, Quartz Crusher, Diabase Crusher,Iron Ore Crusher, Copper Ore Crusher, Zinc Ore Crusher, Manganese Ore Crusher, etc.
1.High crushing ratio, well-distributed final product size.
2.Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it is capable to meet various requirements of customers.
3.lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance.
4.Simple structure, reliable performance, low maintenance cost.
5.Little dust and low noise.
| Model | Feeding opening size (mm) |
Max feeding size(mm) | Discharge opening size (mm) |
Capacity (t/h) |
Motor Power (kW) |
Weight (t) |
Overall dimension (L×W×H)（mm） |
|
| PE250×400 | 250×400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1180×1087×1245 | |
| PE400×600 | 400×600 | 340 | 40-100 | 16-60 | 30 | 6.65 | 1797×1716×1581 | |
| PE500×750 | 500×750 | 425 | 50-100 | 40-110 | 55 | 11.73 | 2119×1918×2046 | |
| PE600×900 | 600×900 | 500 | 65-180 | 80-180 | 55-75 | 16.13 | 2309×2028×2368 | |
| PE750×1060 | 750×1060 | 630 | 80-180 | 110-320 | 90-110 | 30 | 2730×2472×2840 | |
| PE870×1060 | 870×1060 | 750 | 170-270 | 180-360 | 90-110 | 31.22 | 2990×2416×2893 | |
| PE900×1200 | 900×1200 | 780 | 95-225 | 220-450 | 110-132 | 49 | 3362×2750×3260 | |
| PE1000×1200 | 1000×1200 | 850 | 195-280 | 280-550 | 110-132 | 51 | 3823×2938×3285 | |
| PE1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 160-220 | 100.9 | 4930×3334×4057 | |
| PEX150×750 | 150×750 | 120 | 18-48 | 8-25 | 15 | 3.5 | 1252×1593×1025 | |
| PEX250×750 | 250×750 | 210 | 20-50 | 13-35 | 30 | 4.96 | 1435×1832×1715 | |
| PEX250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 30-37 | 6.5 | 1706×1964×1380 | |
| PEX250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 37-45 | 8.8 | 1700×2132×1450 | |
| PEX300×1300 | 300×1300 | 250 | 20-90 | 25-95 | 55-75 | 12.6 | 2026×2320×1723 | |
| Model | ZXC96 | ZXC106 | ZXC110 | ZXC125 | ZXC160 | |
| Width of feeding opening (mm) |
930 | 1100 | 1100 | 1250 | 1600 | |
| Deepth of feeding opening (mm) |
580 | 630 | 850 | 950 | 1200 | |
| The max feeding size (mm) |
460 | 530 | 680 | 760 | 960 | |
| Power （kW） | 90 | 110 | 160 | 160 | 250 | |
| Eccentric shaft speed (rpm) |
330 | 280 | 230 | 220 | 220 | |
| Capacity (tph) |
120-455 | 170-330 | 190-625 | 290-845 | 520-1275 | |
| The width of discharge opening size (mm) |
60-175 | 110-170 | 70-200 | 100-250 | 150-300 | |
| Overall dimension (L×W×H) （mm） |
2830×1983×1924 | 3346×2111×2376 | 3890×2374×2836 | 4111×2596×2952 | 5690×3318×3843 | |
| Weight (kg) | 11353 | 18700 | 26150 | 39239 | 79993 | |
| Output size (mm) |
The tight side discharge opening (mm) |
Ton/Hour | Ton/Hour | Ton/Hour | Ton/Hour | Ton/Hour |
| 0-30 | 20 | |||||
| 0-35 | 25 | |||||
| 0-45 | 30 | |||||
| 0-60 | 40 | |||||
| 0-75 | 50 | |||||
| 0-90 | 60 | 120-155 | ||||
| 0-105 | 70 | 140-180 | 155-200 | 190-250 | ||
| 0-120 | 80 | 160-210 | 175-230 | 210-275 | ||
| 0-135 | 90 | 180-235 | 200-260 | 235-305 | ||
| 0-150 | 100 | 200-260 | 220-290 | 255-330 | 290-380 | |
| 0-185 | 125 | 250-325 | 280-365 | 310-405 | 350-455 | |
| 0-225 | 150 | 300-390 | 335-435 | 370-480 | 410-535 | 520-675 |
| 0-260 | 175 | 350-455 | 390-510 | 425-550 | 470-610 | 595-775 |
| 0-300 | 200 | 445-580 | 480-625 | 530-690 | 675-880 | |
| 0-340 | 225 | 590-770 | 750-975 | |||
| 0-375 | 250 | 650-845 | 825-1070 | |||
| 0-410 | 275 | 900-1170 | ||||
| 0-450 | 300 | 980-1275 | ||||
